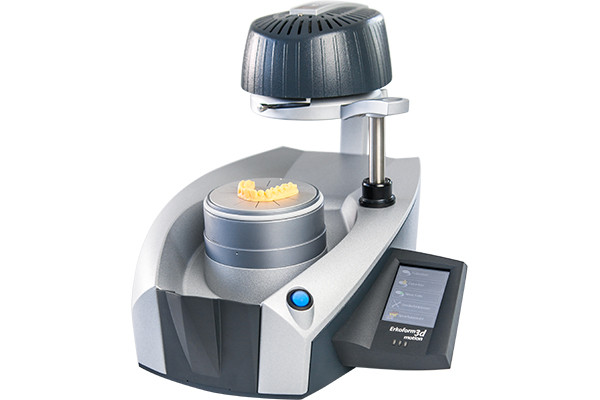

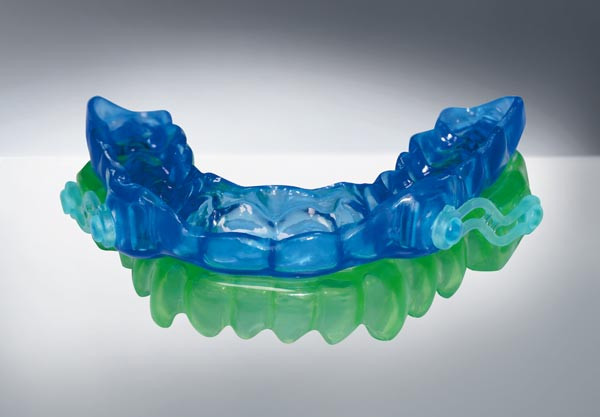

A large volume reserve vacuum is being held to allow a sudden forming. A sensor for touchless temperature measurement ensures the accurate temperature of the material for thermoforming regardless of the ambient temperature. The unit is equipped with medium-wave infrared heating, which doesn’t need preheating time. The medium wave allows for the materials to heat up not only on the surface but also in-depth. The result is a less stressed splint. The Occluform-3 can be installed (accessory).

Technical Specification

• H 31,5 / W 35 / D 37 cm
• weight 13,9 kg
• foil diameter 120 mm
• foil thickness 0 - 5.5 mm
• ~220 - 240 (110 - 120) (100) volts, 50 - 60 hertz
• power: 340 watt
• max. vacuum 0.8 bar
• noise level < 60 dB(A)
